ITEM SPECIFICS

  • Brand
    ZTON
    Model ZTON 320
  • origin
    Republic of Korea
  • Size(Capacity)
    40ft HQ Container


PRODUCT DESCRIPTION

[Product Description]

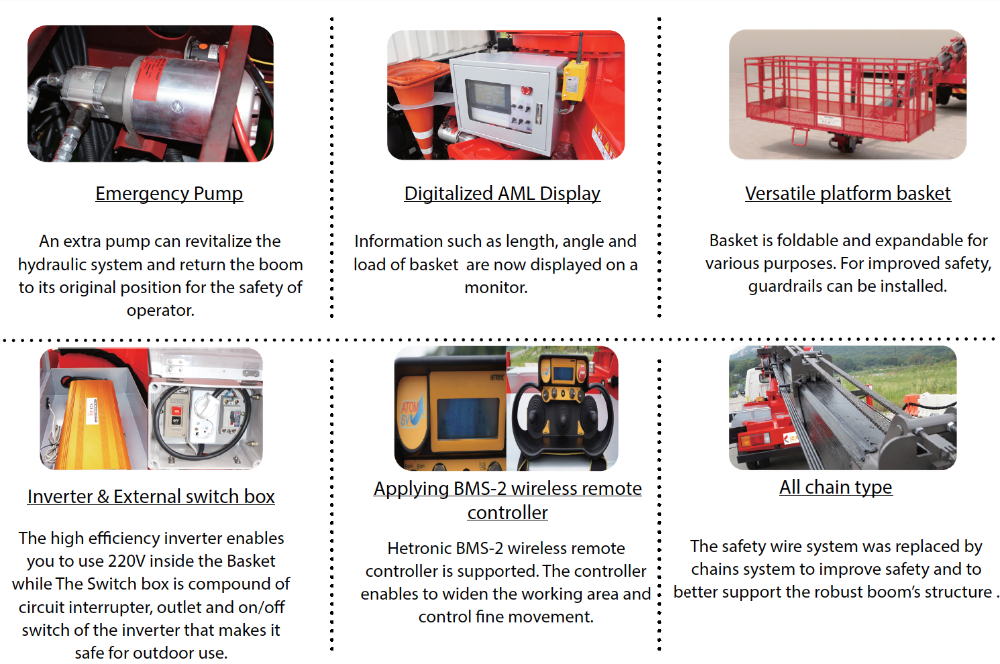

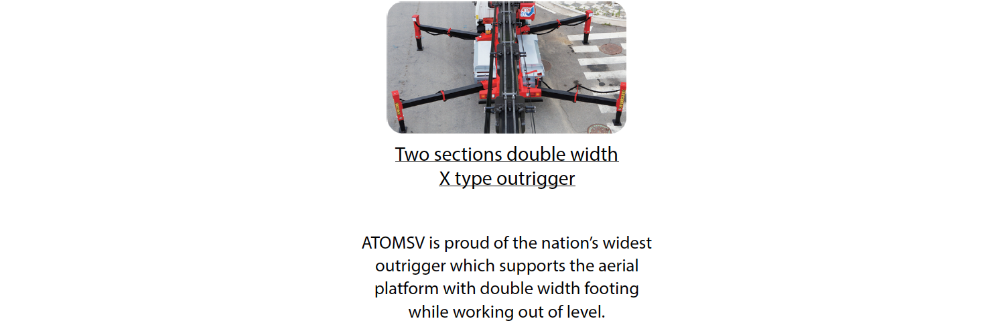

- 2 sections double width outriggers maximize the safe working radius.

- Booms’ sections retraction/extension is operated by a robust chain.

- Boom sagging prevention technology installed.

- Improved bearing controller provides better slewing performance.

- Data such as load weight, working height, boom’s angle and outrigger status are all displayed on the LCD screen.

- Extra reinforcement is applied to the chassis.

- Basket rotation is hydraulically operated.

- The automatic boom return system is installed as a default feature.




[Product Specification]


Product Name



ATOM320

Truck chassis

Maker & Model



Hyundai 3.5 ton (E-Mighty)

Equipment

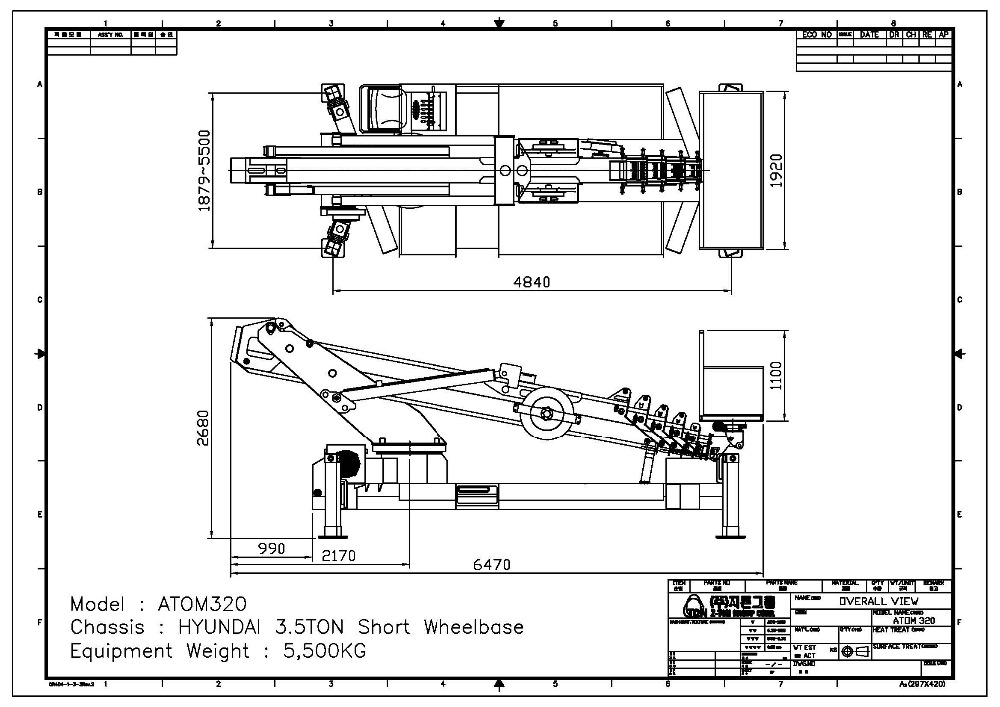

Dimension

Platform Size L*W*H

mm

6470* 1879* 2680

Basket Rotator

Deg

360º  Continuously



Working specification



Max. Working height

m



30.5

Max. Working Radius

m

FRONT ; 9.7(300) , SIDE / REAR ; 15(300)

Max. Platform Capacity

kg

300 or 2 persons+Tools

Boom

Structure type



6 section - Octagonal high tensile steel

Turntable

Type



Hydraulic motor driven, worm & spur gear reduction

Turntable slewing

deg

360º



Outrigger

Spread

mm

Front: 5500

Rear: 5500

Operation - Type



Hydraulic

Front: X type / Rear: X type

Control

Main



Manual Valve lever



Optional Device



Wireless remote control



AML safety system



Inverter system

 ** The specifications may be modified for performance enhancement and personal purposes. **

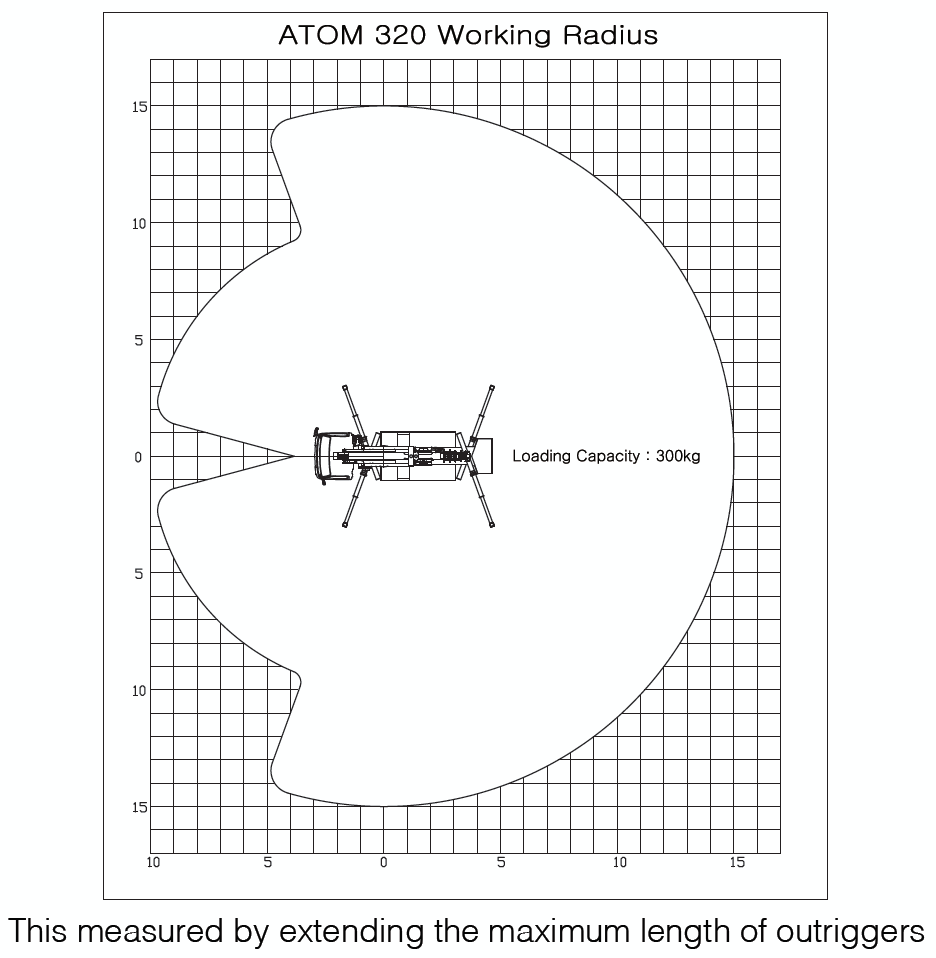

** This measured by extending the maximum length of outriggers.
