WIRELESS TOUCH SWITCHE DT-TF / RFS | WIRELESS, TOUCH, SWITCHE
layer popup view

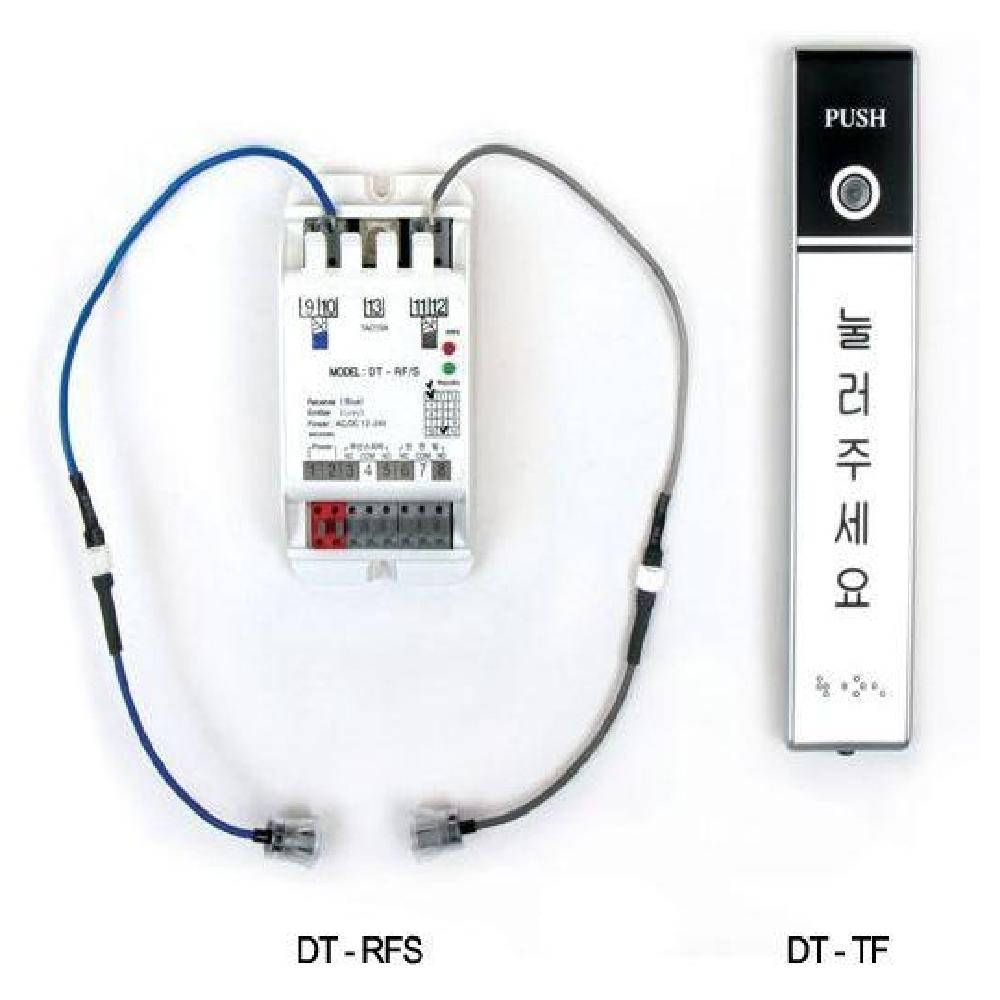

full image WIRELESS TOUCH SWITCHE DT-TF / RFS
Unbranded

WIRELESS TOUCH SWITCHE DT-TF / RFS

  • Payment
    T/T
  • MOQ
    Negotiable
  • Country of sale
    World Wide
  • PRICE

    • FOB

      Depend on quantity

ITEM SPECIFICS

  • Brand
    Unbranded
    Model DT-TF / RFS
  • origin
    Republic of Korea
  • Size(Capacity)


PRODUCT DESCRIPTION




[Product Description]

DT-TF is a wireless type Touch Switch to open and close kinds of automatic doors.
It' s wireless control method enables to apply for the automatic doors that cannot be worked
with wiring.



[Product Features]

* By pressing Touch Switch for 3 seconds, available to keep the door open and to clear.
* With wireless type, suitable for glass doors, auto-doors that cannot be worked with wiring.
* Easy installation with no need of wiring.
* Available to use with safety beam sensor when installed to door.
* Can be installed as a wide use, in addition to auto door.

* With elegant figure, designed as a narrow switch to enable installation in narrow door x-frame.



[Product Specification]



          DT-TF (Transmitter)                    DT-RF (Receiver)
Power Supply DC 3V Lithium Batteries   AC / DC 12 ~ 24V
Current Draw  Max. 10mA  Max. 10mA : 12V - waiting : 20mA   / operating : 40mA
　 　                       24V - waiting : 10mA   / operating : 20mA
Frequency  447.7MHz   447.7MHz ( FM method )
Communication method                                                                  ID
Oscillation method                                                             Crystal
Operating distance                                                        Within 30m
Operating temperature range                                                    -15˚C ~ +55˚C
Transmission Output  1mW 　
Output Maintenance  About 1 sec.
Reception Sensitivity 　  -100 ~ -110dBm
Output Holding Time 　  About 2 sec.
Monitoring Output 　  N.O, COM, N.C. DC24V 1A
Dimension  188mm(L) x 39mm(W) x 13mm(H)   109.5mm(L) x 54.78mm(W) x 30.5mm(H)
Weight   65g  80g
Certification  MIC  　
