Corona Type Ionizer (Ion Bar) SIB5S-C Series
-
Payment
T/T
-
MOQ
1 ea
-
Supply Ability
999,999 ea per One-Time
-
Supply Details
Negotiable
-
Country of sale
World Wide, Asia, Europe, Americas, Middle East
-
PRICE
-
FOB
Depend on quantity
-
ITEM SPECIFICS
-
Brand
Model SIB5S-C SeriesSIB5S-C Series
-
origin
Republic of Korea
-
Size(Capacity)
Small size
-
Function
Electrostatic removal
-
Material
Non-Flammable ABS (Level V0)
-
Color
Light Gray
-
Expiry Date
1 Year
-
Features
UL certified product
PRODUCT DESCRIPTION

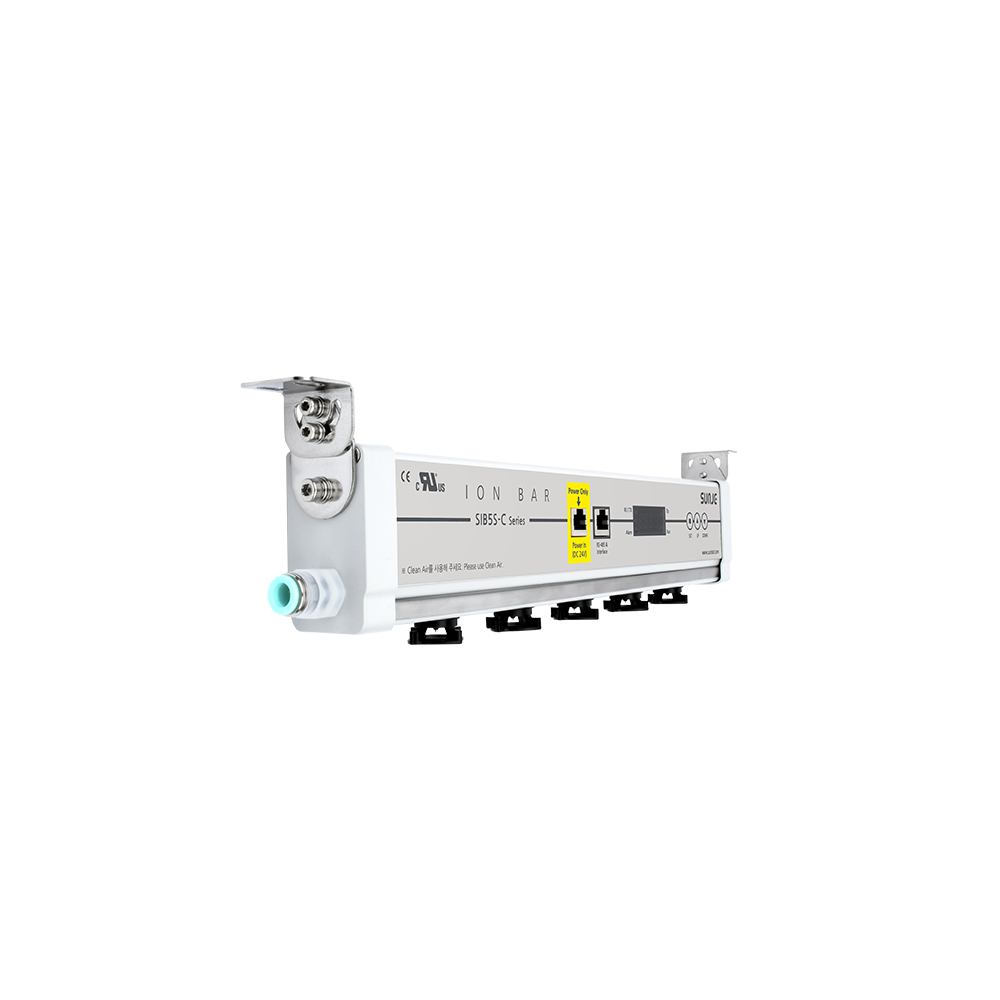

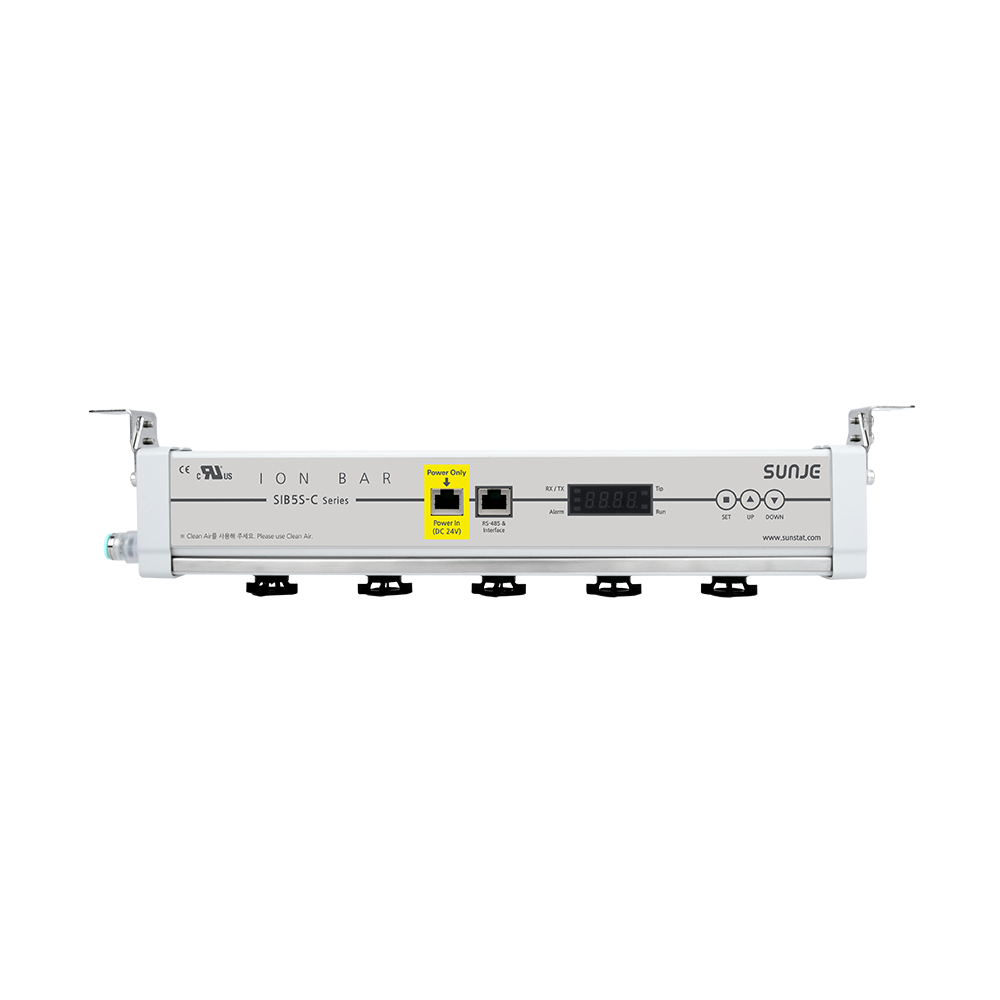

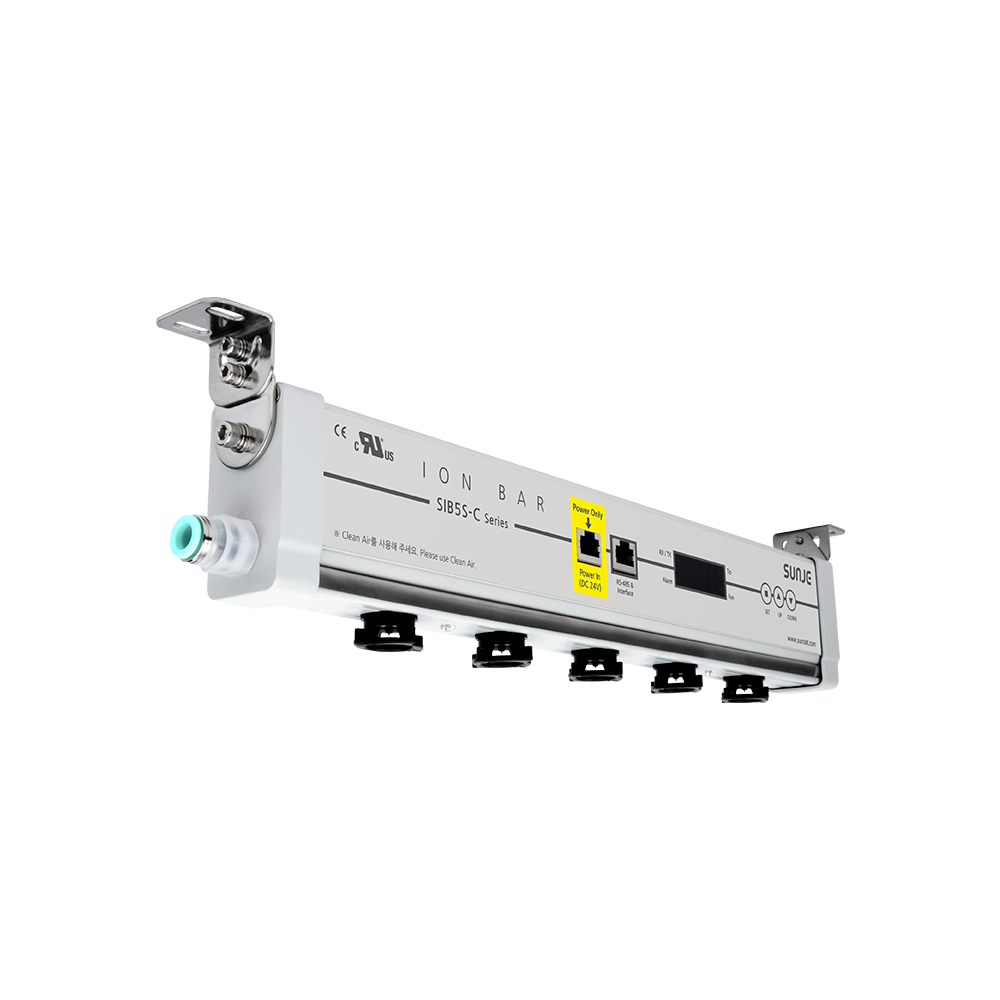

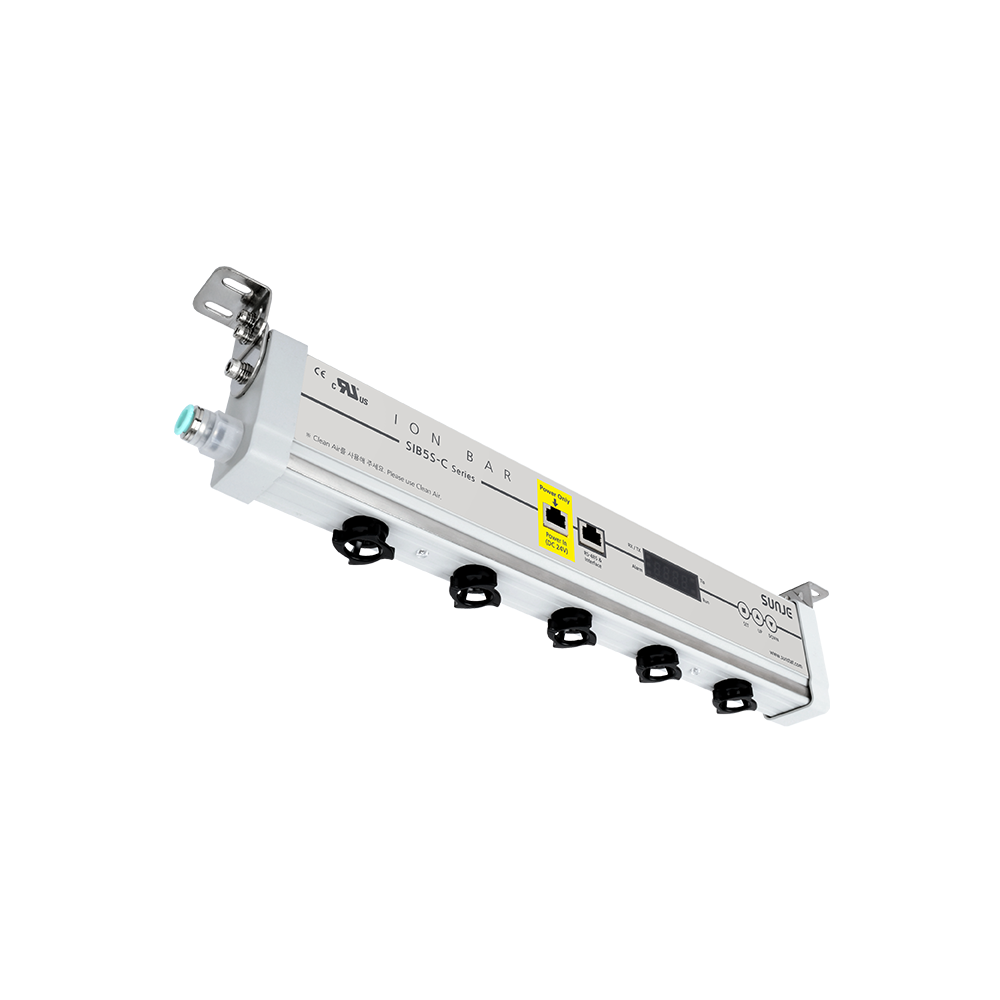

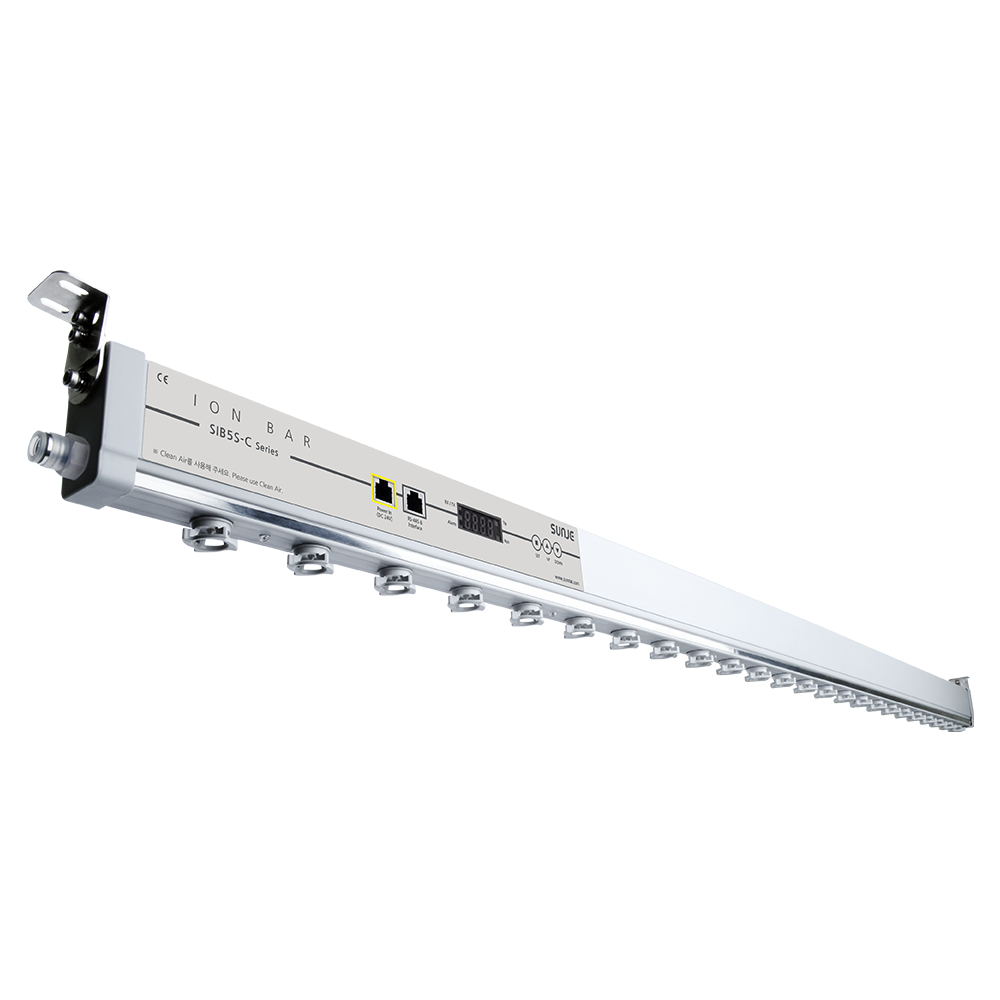

Corona Type Ionizer (Ion Bar) SIB5S-C Series
Product Description
SIB5S-C is the Controller all-in-one type ion bar that has obtained UL certification. It achieves stable performance and constant ion balancing for long time use through high frequency, and it has a digital control system to minimize corona discharge loss.
Key Features
1. UL certified product
2. Stable ion balance during long term usage
3. Low peak voltage through high frequency
4. Improved convenience of maintenance by minimizing wear and contamination of discharge emitter
5. Increase ion generation by reducing corona discharge loss
6. Tip cleaning alarm (You can set tip cleaning period with timer)
7. One touch type for easy tip replacement and cleaning
2. Stable ion balance during long term usage
3. Low peak voltage through high frequency
4. Improved convenience of maintenance by minimizing wear and contamination of discharge emitter
5. Increase ion generation by reducing corona discharge loss
6. Tip cleaning alarm (You can set tip cleaning period with timer)
7. One touch type for easy tip replacement and cleaning
Cautions
1.Always use either one of the following materials for air supply; CDA(Celan Dry Air) or N2. If there are any water or oil contamination in the air supply, it will cause malfunction or cause of accident.
Specification
| Product Name | Corona Type Ionizer (Ion Bar) |
| Brand Name | SIB5S-C Series |
| Input Power | DC 24V (±5%) |
| Power Consumption | Max. 4.8W |
| Current Consumption | Max. 200mA |
| High Voltage | Pulse AC 11.5kV |
| Ion-Generation Method | Corona discharge Pulse AC |
| Operating Distance | 50~2,000mm |
| Air Purge Supply Pressure | 0.1 ~ 0.5MPa (CDA, N2[Need to be no dew condensation]) |
| Operation Circumstance | 0℃ ~ +50℃(32℉ ~ 122℉), 35% ~ 85% RH |
| Ozone(O3) Concentration | ≤0.05ppm |
| Main Body Material | Non-Flammable ABS (Level V0) |
| Electrode Material | Standard(Tungsten) / Options(Silicon / Titanium) |
| Electrode Replacement | Cartridge type |
| Operation Life | 1 Year |
| Height | 97.5mm |
| Width | 400mm ~ 3000mm |
| Origin | Republic of Korea |
Company Overview
Sunje professionally designs and manufactures any kinds of static ionizers for cleanroom industy.
SUNJE has grown as an expert in Electrostatic field based on our accumulated know-how and technology. Since established in year 2000, we aim to be a world top company and keep developing our research and technology for better quality and reliability.
To get rid of electrostatic in FPD industry such as OLED, LCD, Semiconductor, Printing, Film, Extrusion, Process handling Electronic component, Sunje promise you to satisfy various demands with perfect product, excellent performance, optimum price, and prompt
Furthermore we are enlarging our field not only Electrostatic but also Plastic, Surface treatment and Medical industry to create higher satisfaction. Sunje will do the best until the customer satisfies.
SUNJE has grown as an expert in Electrostatic field based on our accumulated know-how and technology. Since established in year 2000, we aim to be a world top company and keep developing our research and technology for better quality and reliability.
To get rid of electrostatic in FPD industry such as OLED, LCD, Semiconductor, Printing, Film, Extrusion, Process handling Electronic component, Sunje promise you to satisfy various demands with perfect product, excellent performance, optimum price, and prompt
Furthermore we are enlarging our field not only Electrostatic but also Plastic, Surface treatment and Medical industry to create higher satisfaction. Sunje will do the best until the customer satisfies.
